（Key Features）
-
Premium Aluminum Alloy: Crafted from 6061/6063 aluminum alloy for exceptional strength-to-weight ratio and corrosion resistance.
-
Precision Manufacturing: Combines precision casting (for complex geometry) with CNC secondary machining, delivering tight tolerances (±0.02mm) for critical features.
-
Lightweight Frame Design: Hollow square frame structure reduces weight while maintaining structural rigidity, ideal for high-speed automation systems.
-
Versatile Connection: Integrated side lugs and threaded mounting holes enable secure attachment to pins, actuators, or mounting bases.
-
Full Customization: Customizable dimensions, hole patterns, and surface treatments (anodization, sandblasting) to match your specific motion system requirements.
（Product Description）

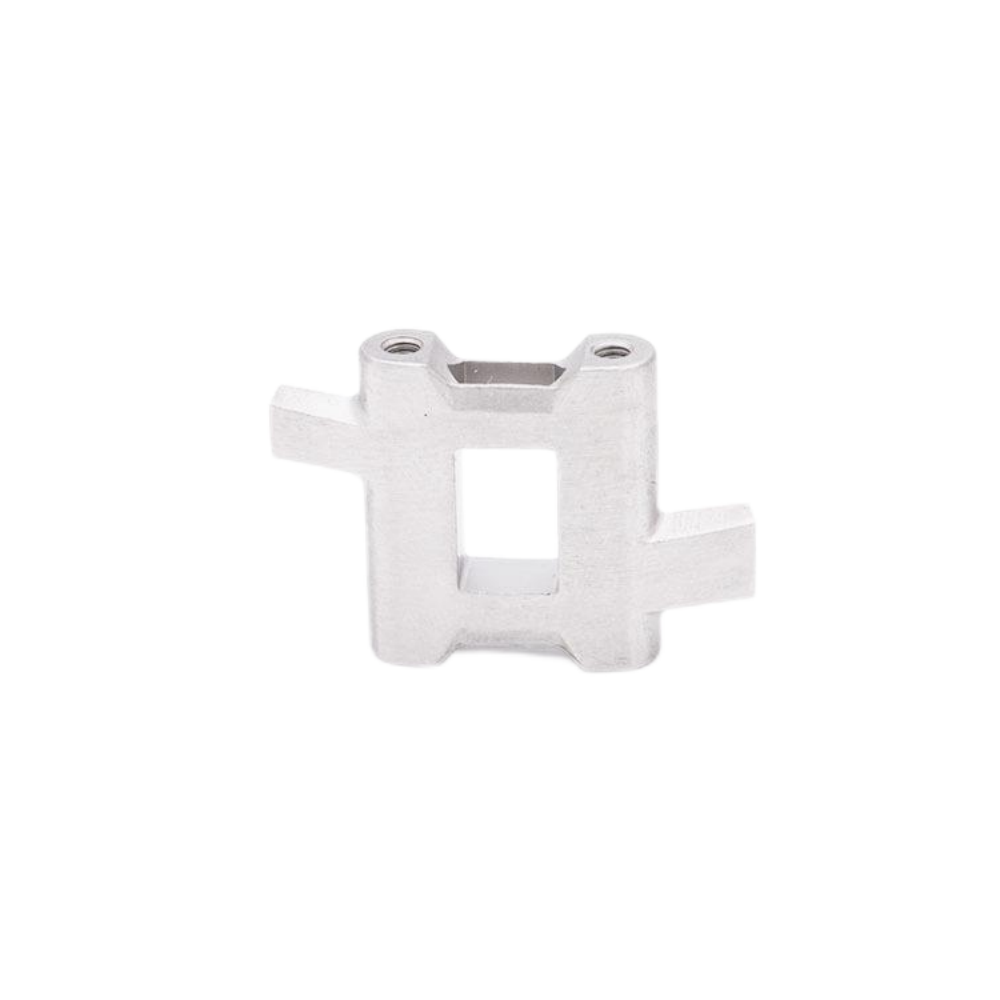

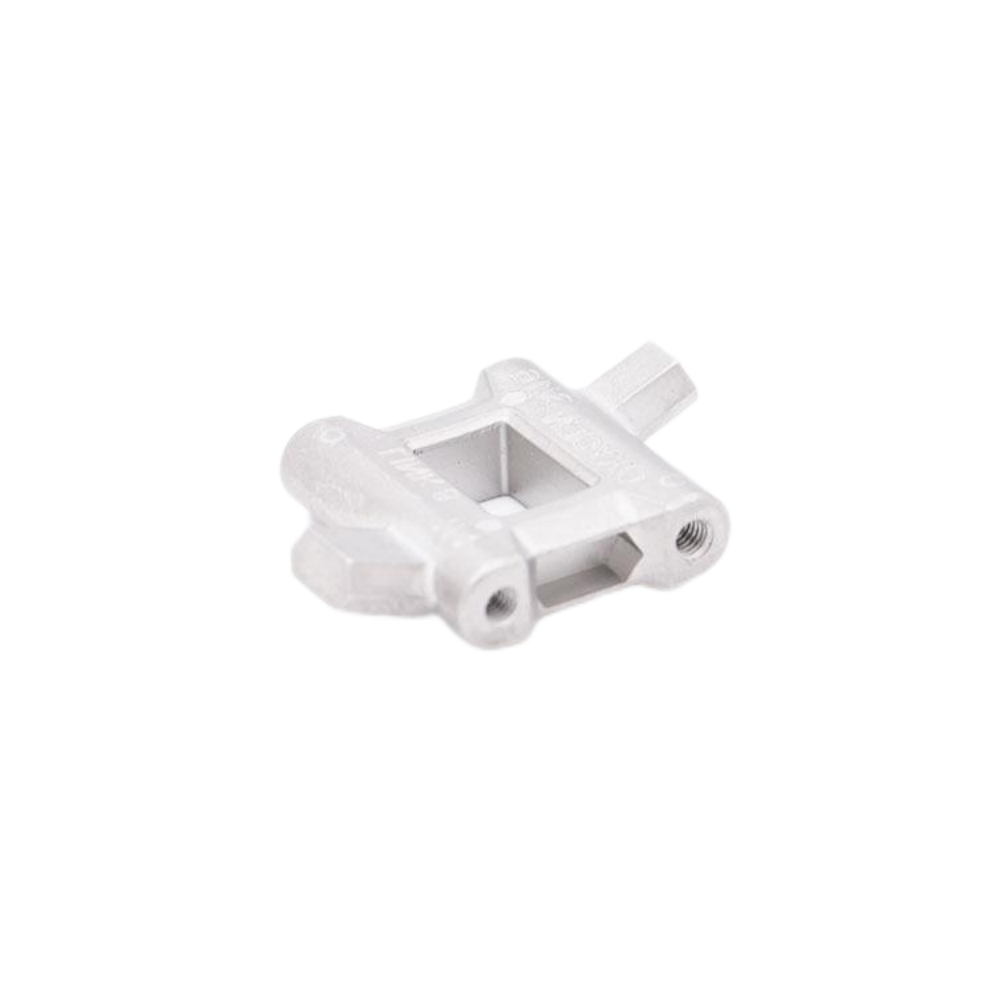

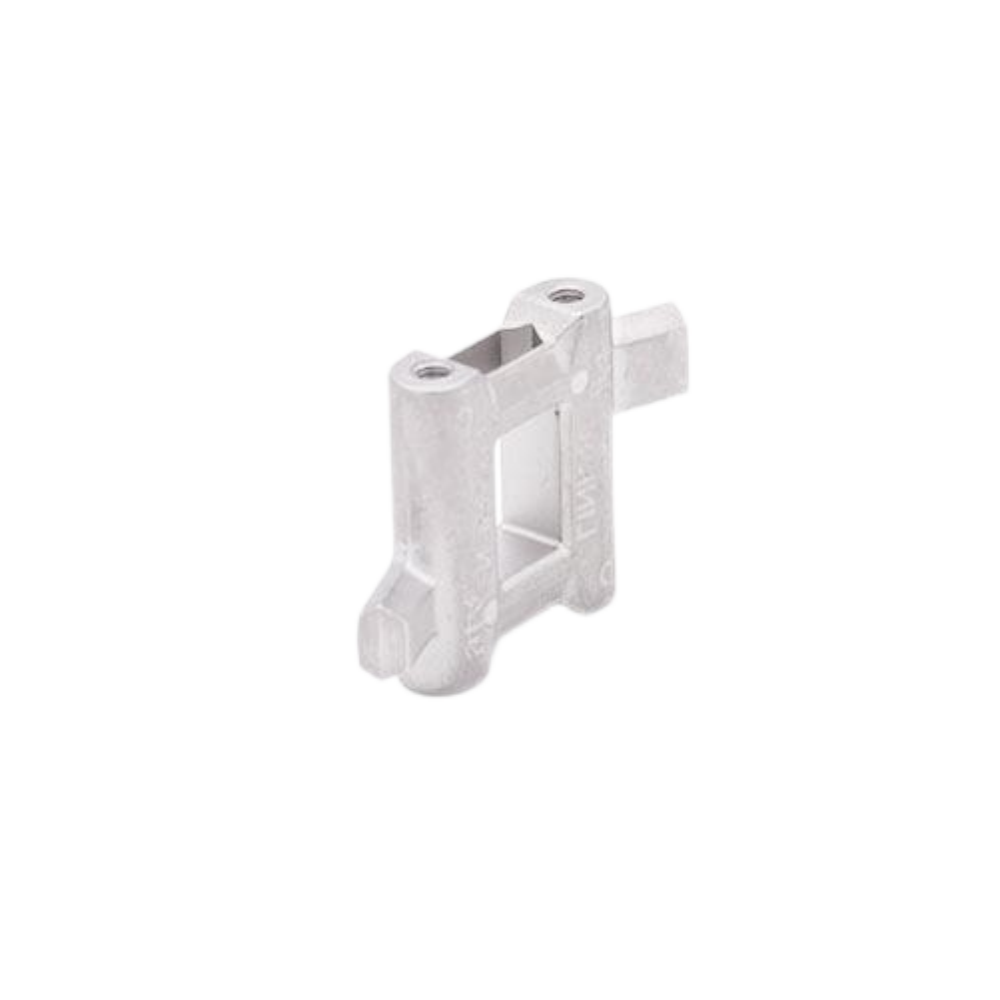

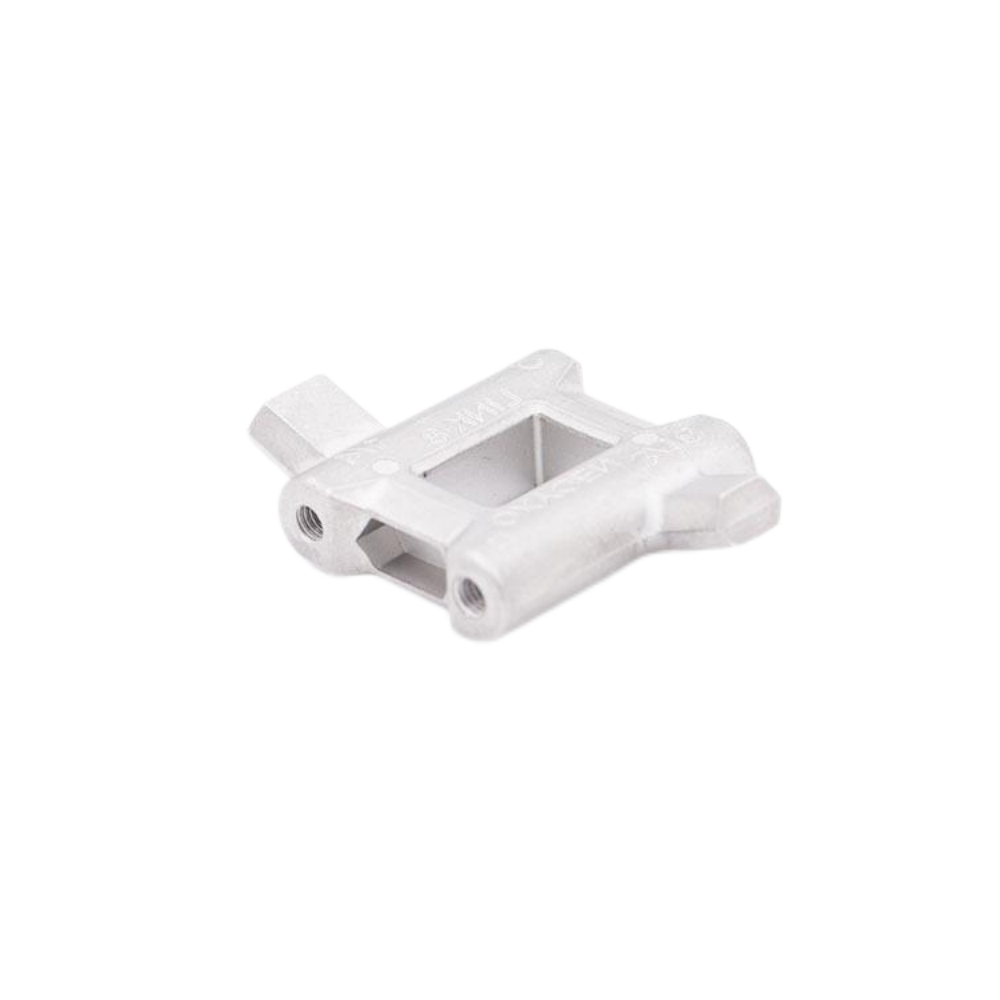

Our custom aluminum precision casting linkage brackets are engineered for reliable power transmission and precise motion control in modern industrial automation and precision machinery.
Produced via a hybrid process of precision aluminum casting and CNC machining, these links achieve the perfect balance of complex geometry and dimensional accuracy. The hollow square frame design significantly reduces component weight without compromising structural integrity, making them ideal for high-speed robotic arms, automated assembly lines, and precision jigs where inertia and responsiveness are critical.
Featuring symmetric side lugs for pin joint connections and precision-threaded mounting holes for secure fastening, these linkages provide a versatile and robust solution for converting rotational or linear motion into controlled mechanical movement. Surface markings (e.g., LINK 8) are integrated for part identification and anti-misassembly purposes.
We offer full customization for every aspect of these linkages, including material selection (6061/7075 aluminum), dimensional adjustments, hole pattern modifications, and surface finishes (clear anodization, black anodization, or sandblasting). Simply provide your 3D CAD model, and our engineering team will optimize the design for manufacturability and deliver a component that perfectly matches your application needs.
（Technical Specifications）
|
Parameter |
Details |
|
Material |
6061/6063 Aluminum Alloy (Optional: 7075 for higher strength) |
|
Manufacturing Process |
Precision Casting/Die Casting + CNC Secondary Machining |
|
Tolerance Range |
±0.02mm – ±0.05mm (Critical threaded holes and mating surfaces) |
|
Mounting Features |
2× Internal Threaded Holes (Custom sizes available), Symmetric Side Lugs |
|
Surface Treatment |
Sandblasting, Clear Anodization, Black Anodization |
|
Application |
Automation Machinery, Robotic Linkages, Jigs & Fixtures, Precision Motion Systems |
