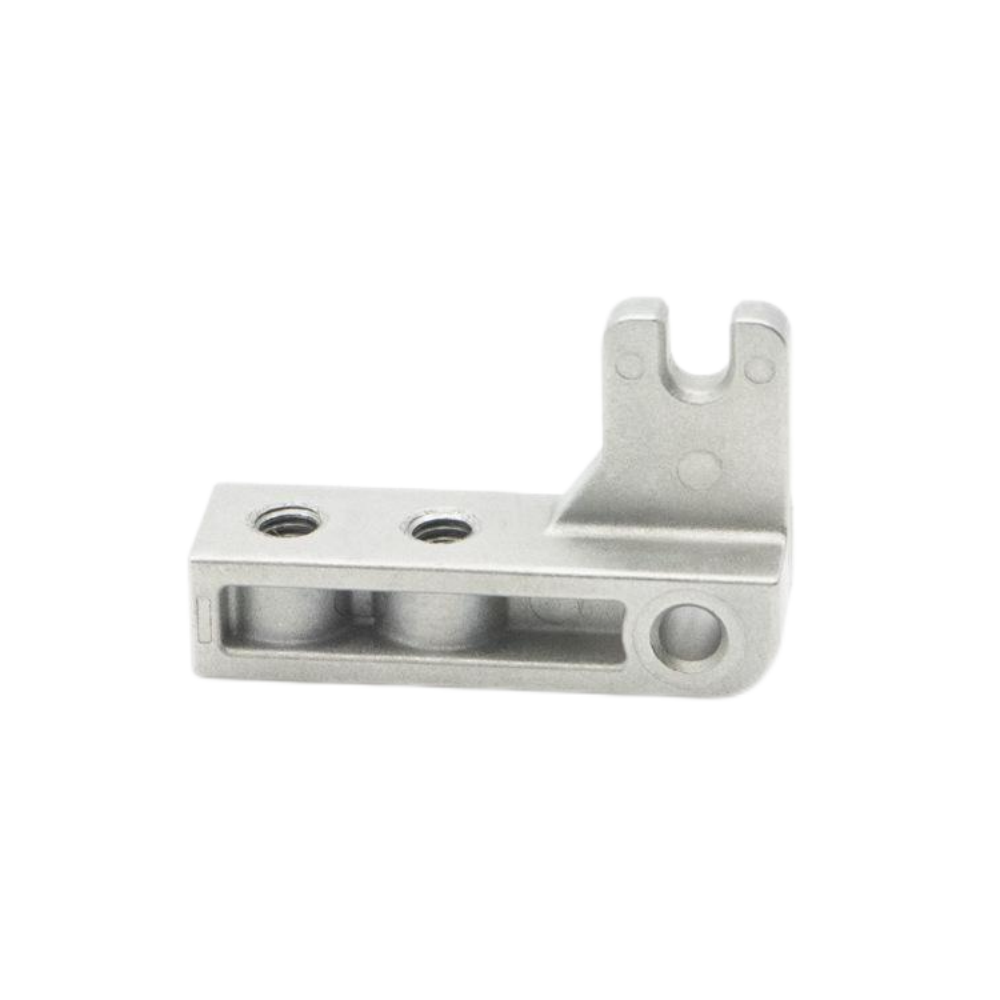

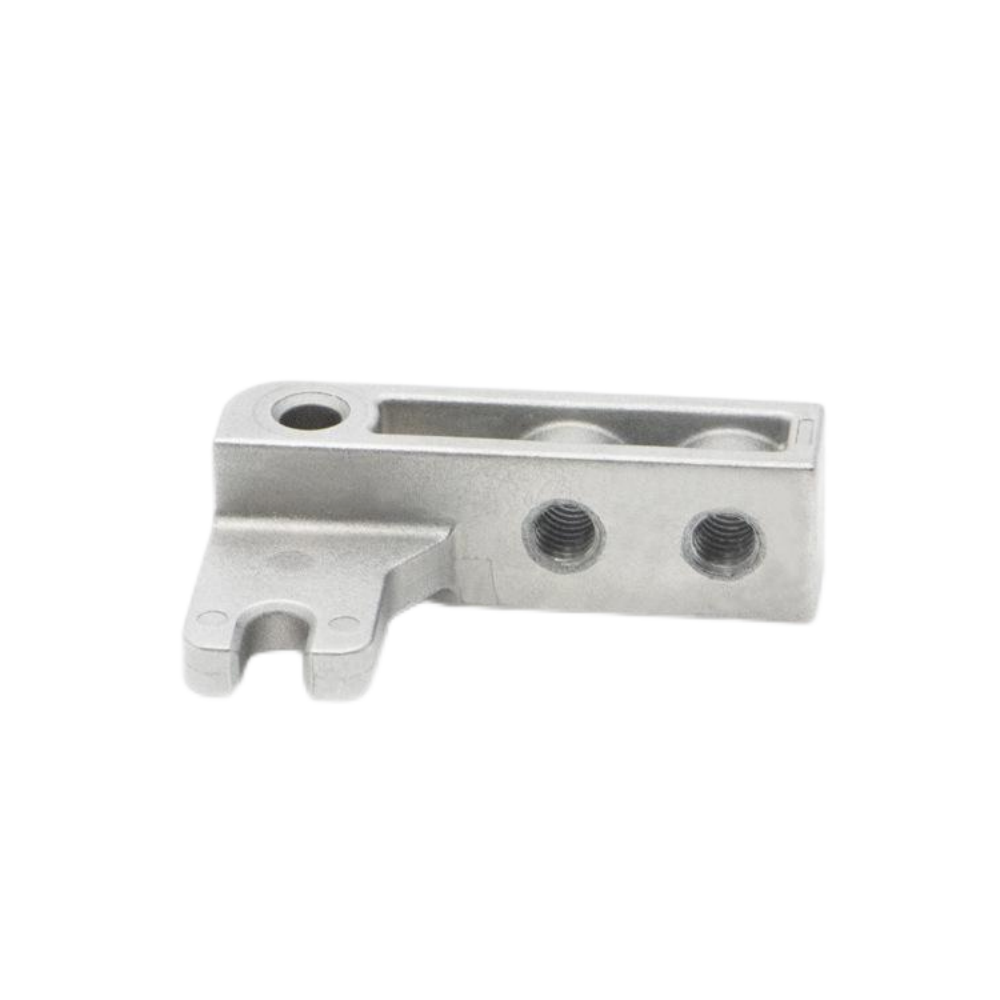

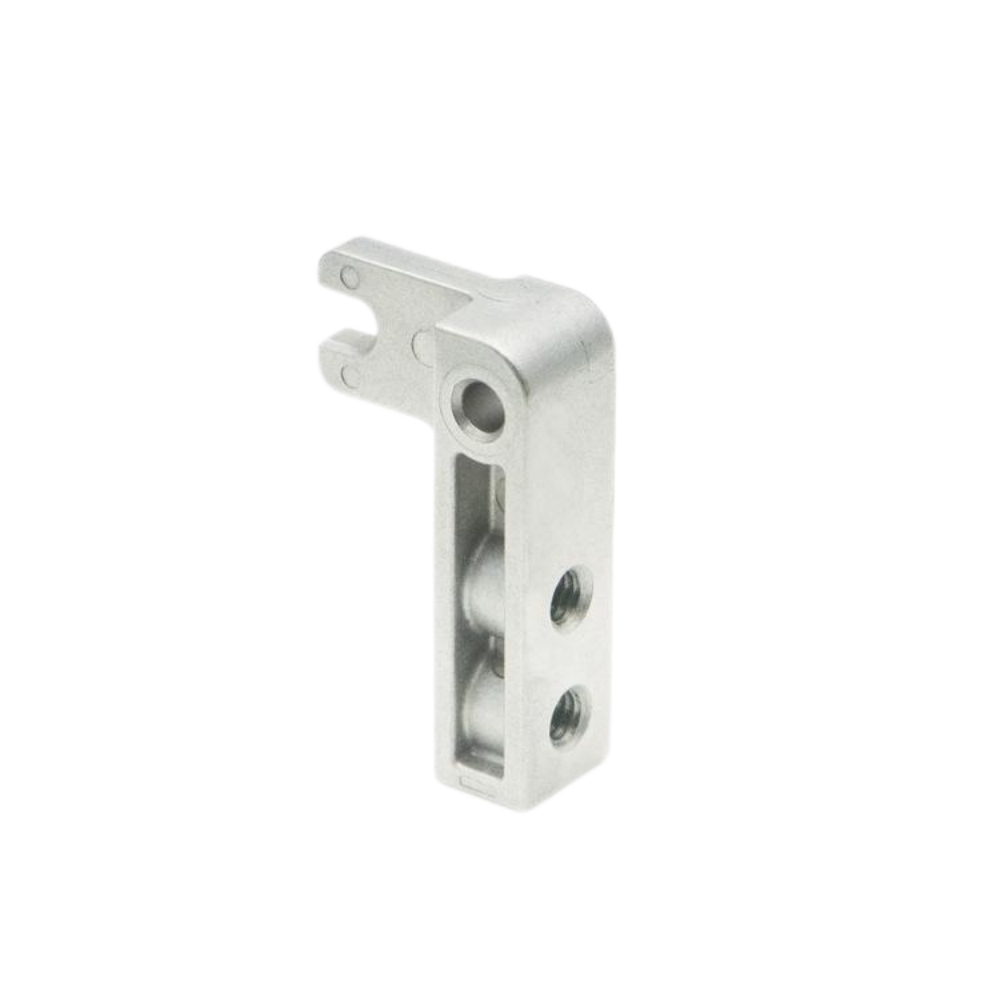

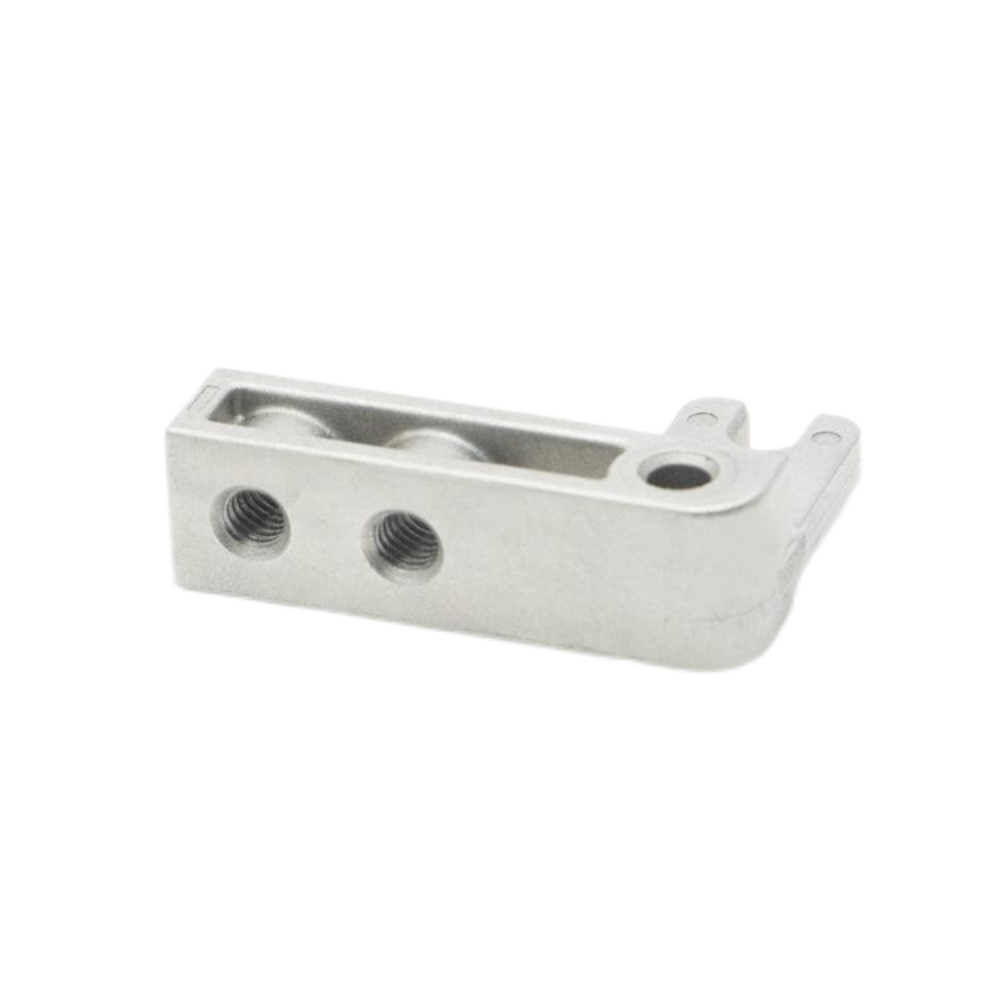

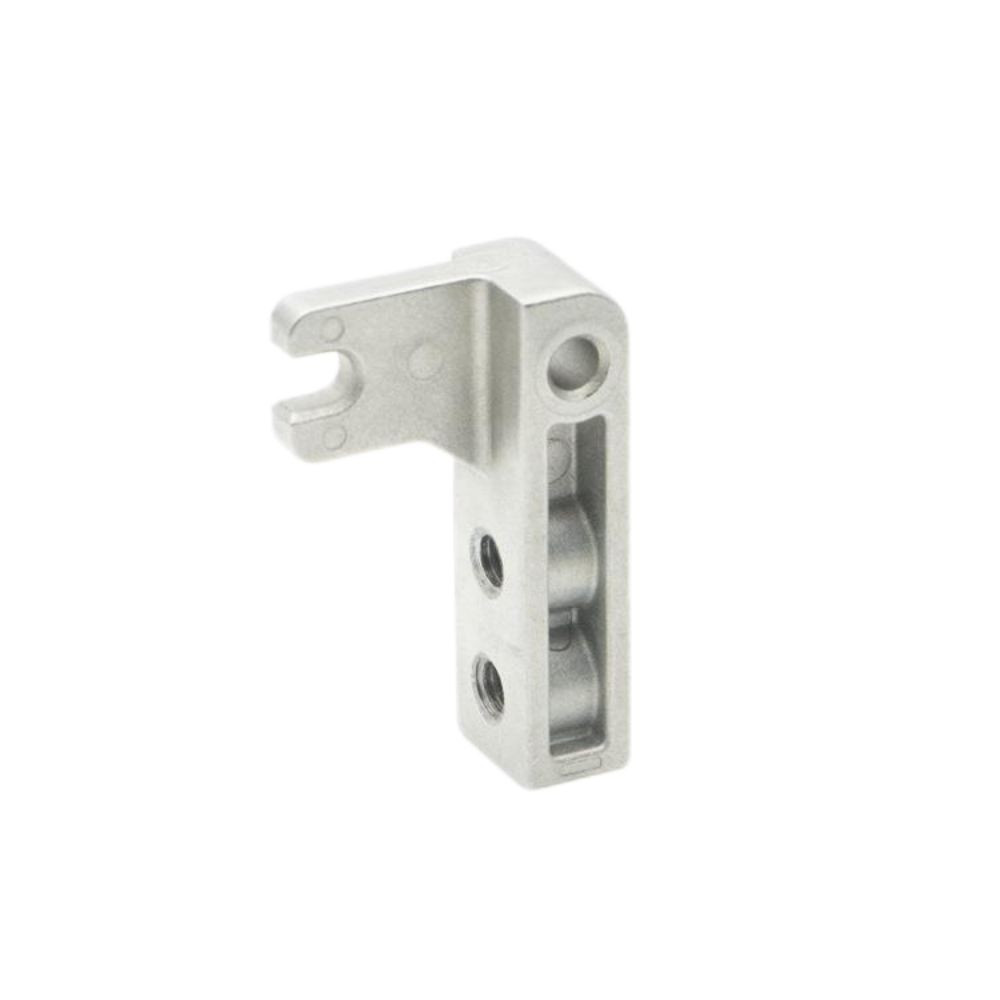

Custom L-Shaped Bracket & Linkage Block | Precision CNC Machined Aluminum Components

Product Presentation

L-Shaped Versatility: Integral L-shaped (right-angle) design provides stable support and connection at 90° angles, optimizing space utilization in compact machinery.
Multi-Functional Mounting: Features pre-drilled threaded blind holes, counterbores, and through-holes for versatile screw fastening, shaft locating, or pneumatic cylinder mounting.
Precision Fit & Locking: CNC-machined U-notch/claw interface ensures precise engagement and positive locking with mating components (pins, sliders, or actuators).
Lightweight & Strong: Hollow web/reinforced rib design balances structural integrity and weight reduction, ideal for high-speed automation systems.
Full Customization: Manufactured from 6061/7075 aluminum or 304/316 stainless steel; customize dimensions, hole patterns, and finishes (anodized/passivated) to your specs.

Parameter	Details
Material	6061/7075 Aluminum Alloy; 304/316 Stainless Steel
Process	Precision Casting/Die Casting + CNC Machining
Tolerance	±0.01mm – ±0.05mm (CNC Machined Features)
Mounting Options	Threaded Blind Holes, Counterbored Holes, Through-Holes
Surface Treatment	Anodized (Al), Passivation/Sandblasting (Stainless)
Application	Automation Equipment, Custom Jigs & Fixtures, Robotic Linkage, Instrument Supports
