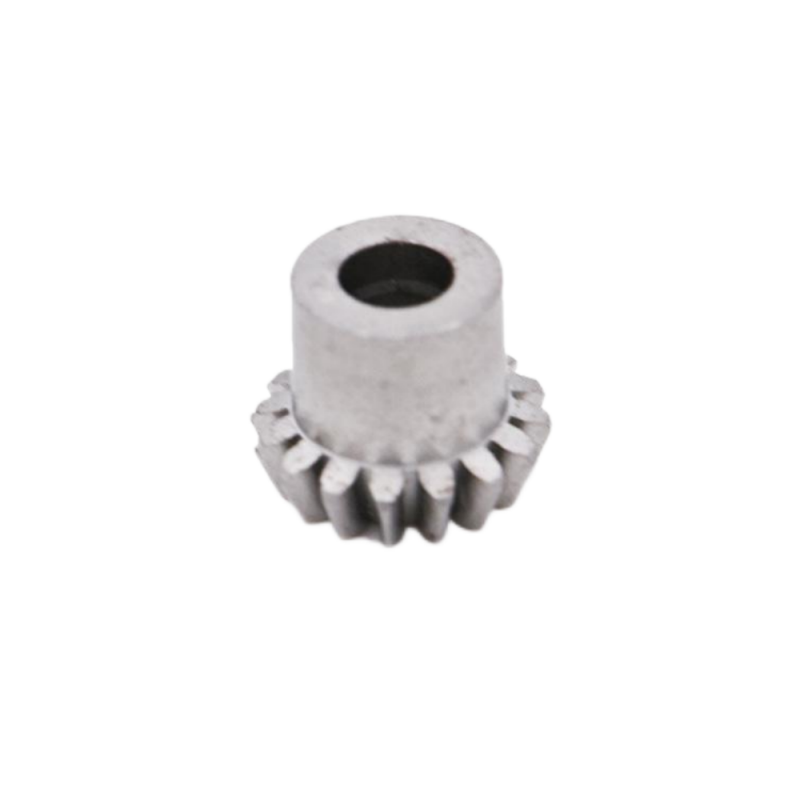

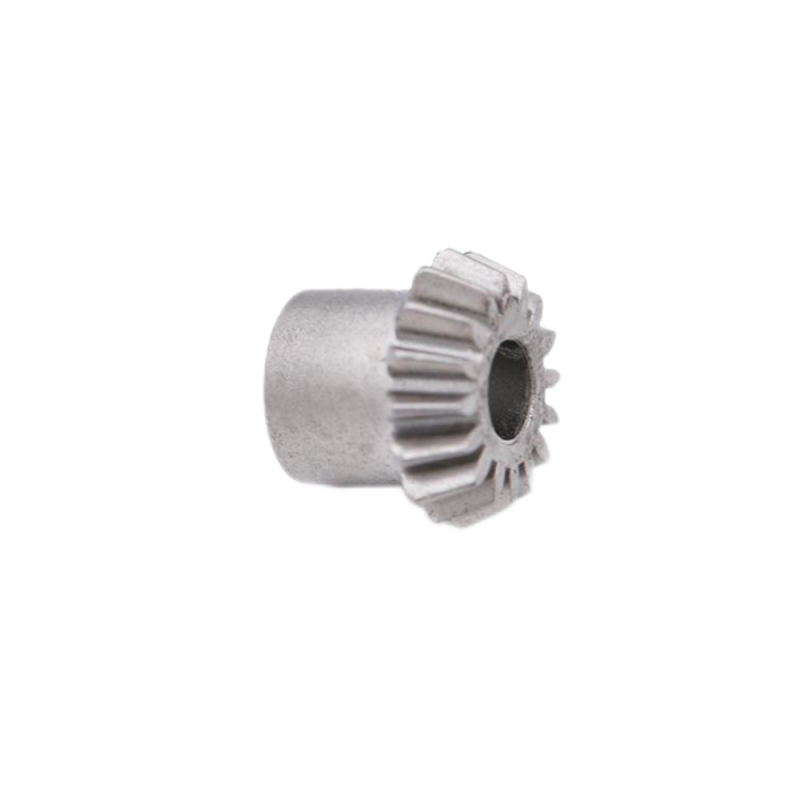

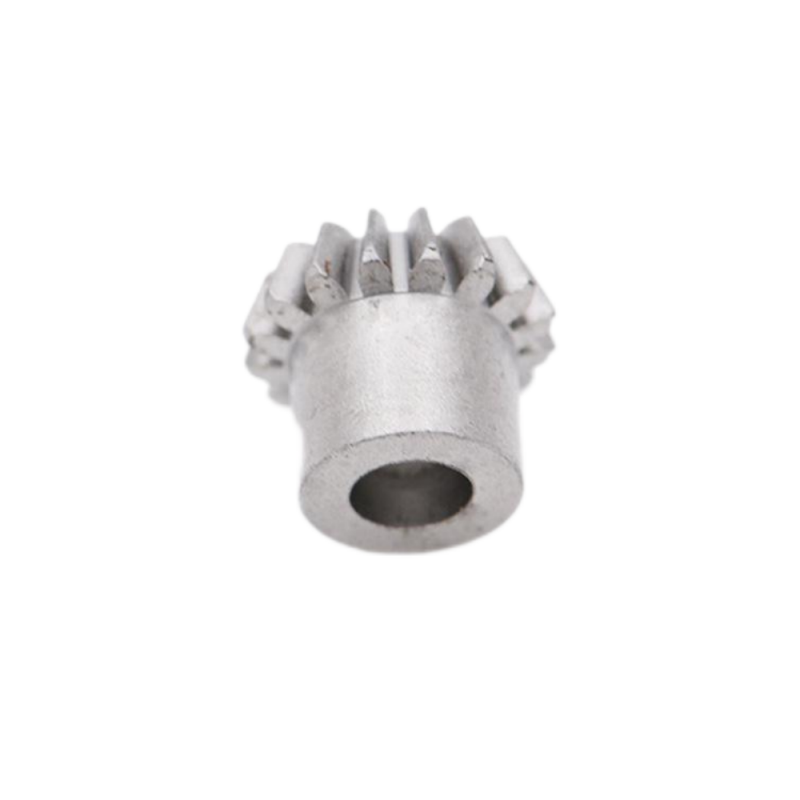

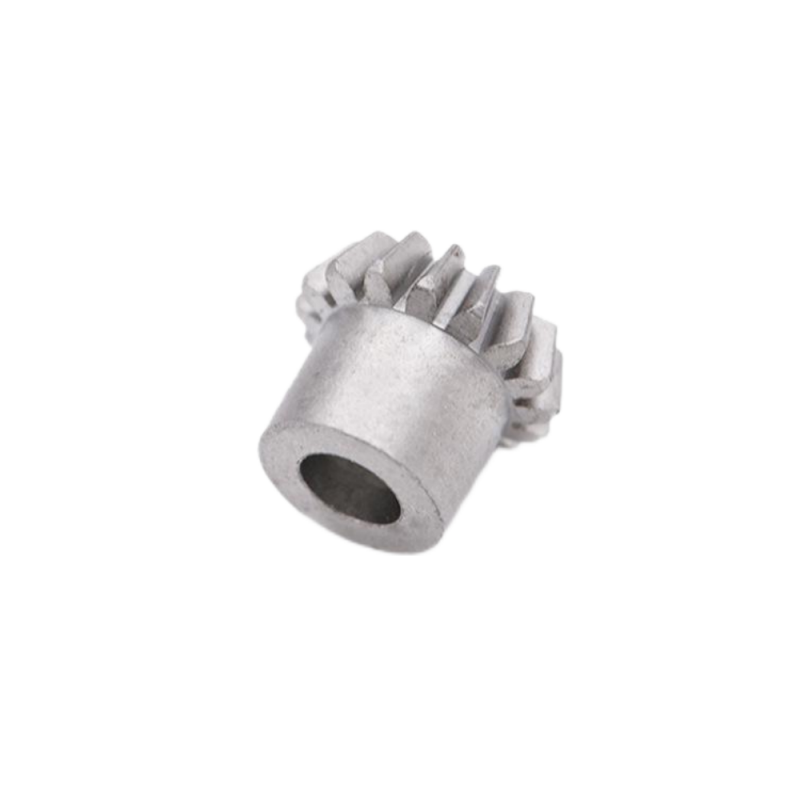

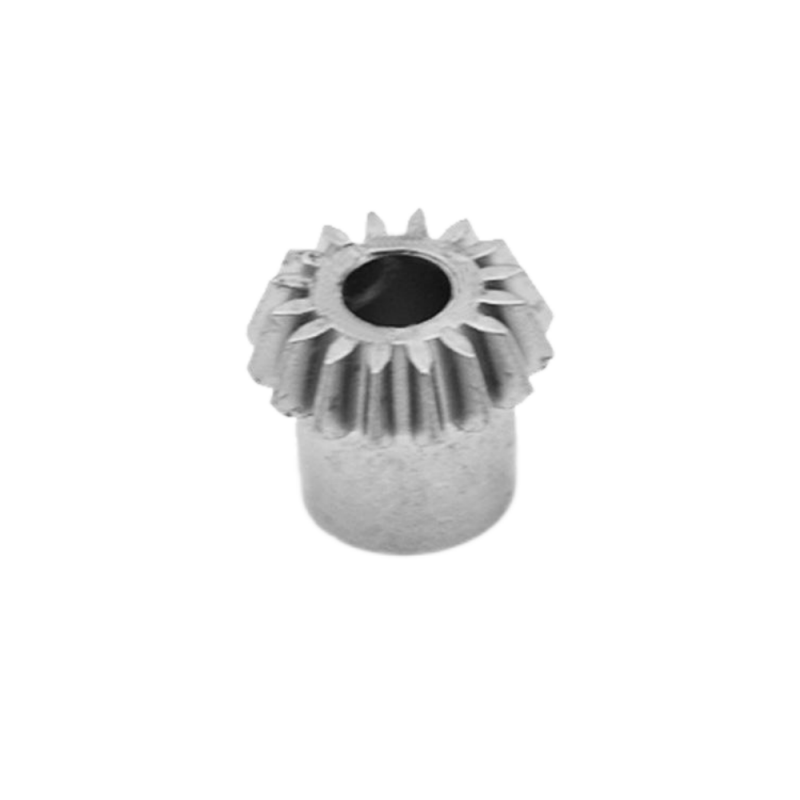

Custom Powder Die-Cast Bevel Gears | Precision Casting Bevel Pinions for Small Motion Systems

Product Presentation
Custom Powder Die-Cast Bevel Gears | Precision Casting Bevel Pinions for Small Motion Systems


（Key Features）


  • Cost-Effective Complex Forming: Powder die-casting/investment casting enables intricate bevel tooth profiles in one piece, ideal for high-volume, small-scale transmission parts.
  • Precision Power Transmission: CNC-finished bevel teeth ensure accurate meshing and smooth torque transfer between perpendicular shafts.
  • Compact & Lightweight: Integral hub and bore design reduces inertia, making it perfect for miniaturized automation and precision instrument applications.
  • Material Versatility: Available in zinc alloy (Zamak 3/5) for cost efficiency or stainless steel (304/316) for high strength and corrosion resistance.
  • Full Customization: Customize module, tooth count, bore size, and material to match your exact transmission requirements.


（Technical Specifications）


Parameter Details
Material Zinc Alloy (Zamak 3/5); Stainless Steel (304/316)
Manufacturing Process Powder Die-Casting / Investment Casting + CNC Finishing
Precision Tolerance ±0.02mm (Bore & Tooth Profile)
Key Features Bevel gear teeth, integral hub, central mounting bore
Surface Treatment Sandblasting, Passivation (Stainless Steel), Electroplating (Zinc Alloy)
Application Small Automation Devices, Precision Instruments, Toy Mechanisms, Model Motors
