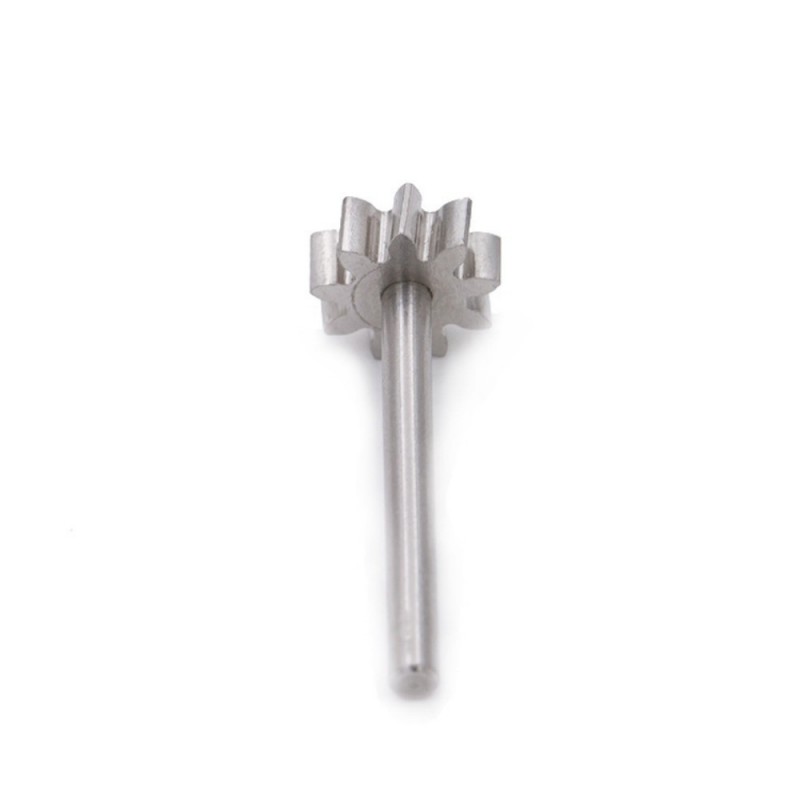

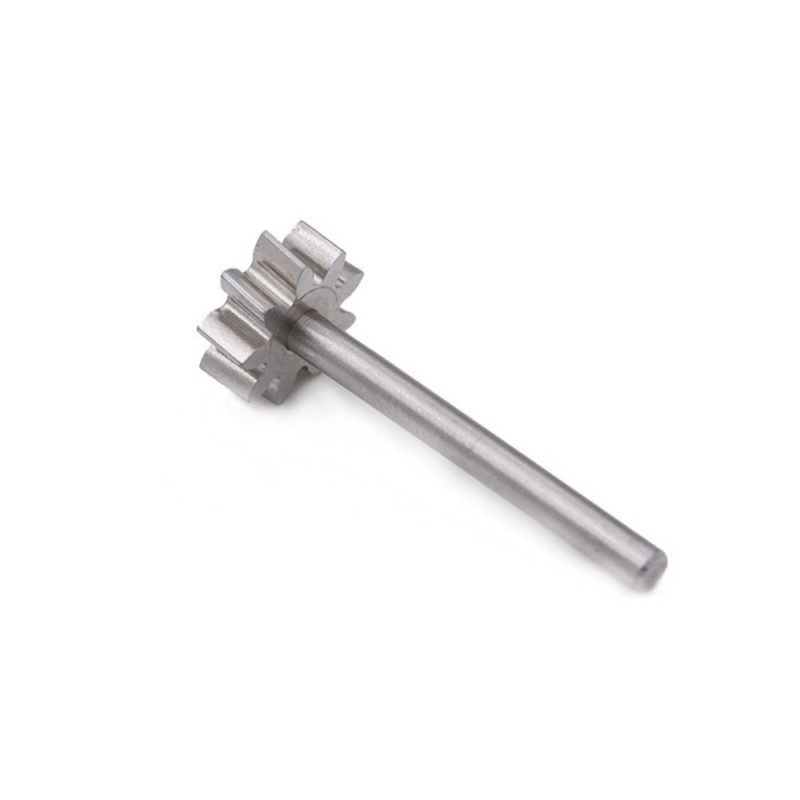

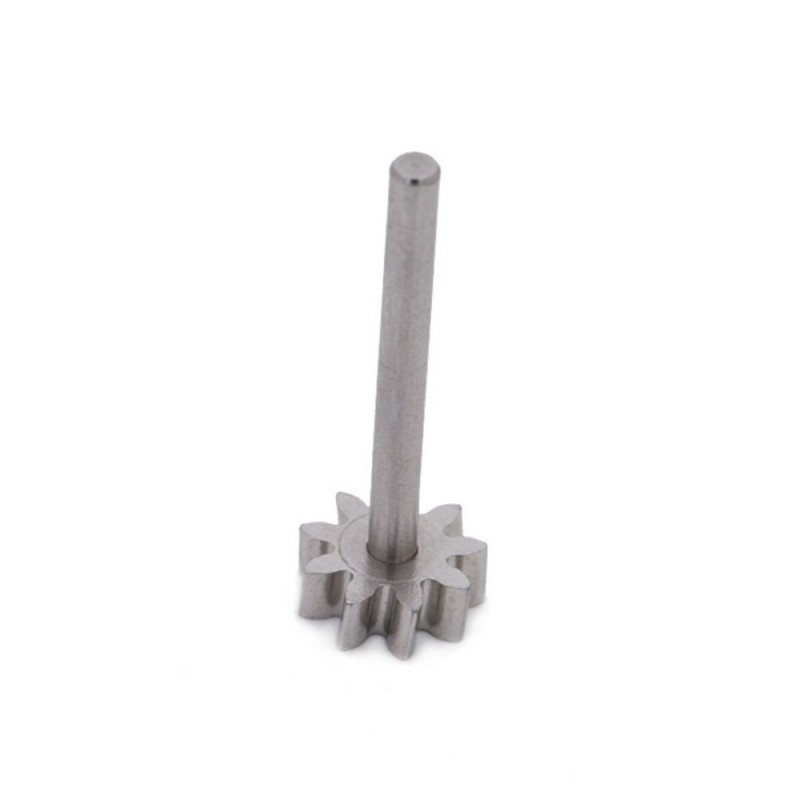

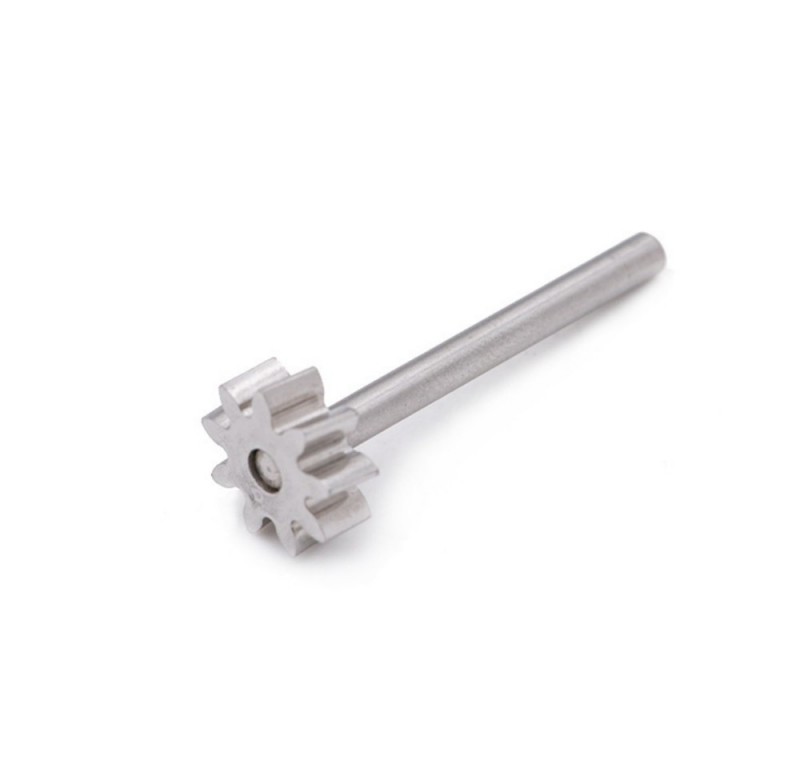

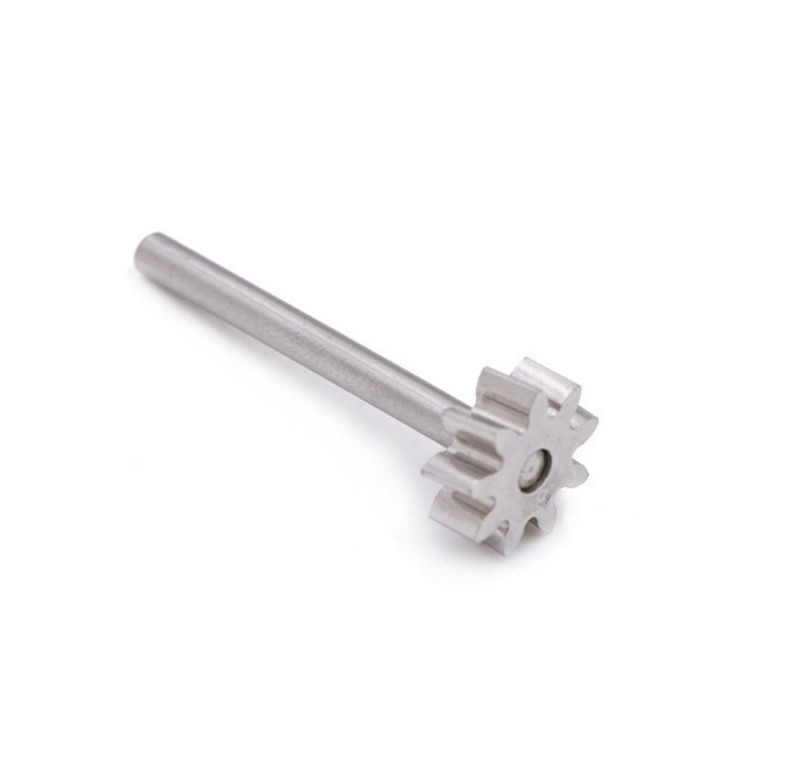

Custom Stainless Steel CNC Machined Gear Shafts | Precision Pinion Shafts for Small Motion Systems

Product Presentation
  • Premium Stainless Steel: 304/316 stainless steel construction delivers exceptional strength, corrosion resistance, and wear resistance for long-term rotational reliability.
  • One-Piece CNC Machining: Integral gear and shaft design eliminates assembly errors, ensuring precise torque transmission and concentricity.
  • Precision Tooth Profile: CNC-hobbed/shaped gear teeth ensure accurate meshing, minimal backlash, and smooth power transfer in compact machinery.
  • Lightweight & Compact: Lightweight hollow/ribbed gear design reduces inertia, ideal for miniaturized automation and precision instrument applications.
  • Full Customization: Manufactured from your 3D CAD files; customize module, tooth count, shaft length, and surface finishes to match your exact transmission needs.


（Technical Specifications）



Parameter Details
Material 304/316 Stainless Steel
Manufacturing Process CNC Turning/Milling + Gear Hobbing/Shaping
Precision Tolerance ±0.01mm (Tooth Profile & Shaft Concentricity)
Key Features Integral pinion gear, long support shaft, lightweight cutouts, locating notches
Surface Treatment Passivation, Electrolytic Polishing, Sandblasting
Application Industrial Automation, Precision Instruments, Miniature Motors, Sm
