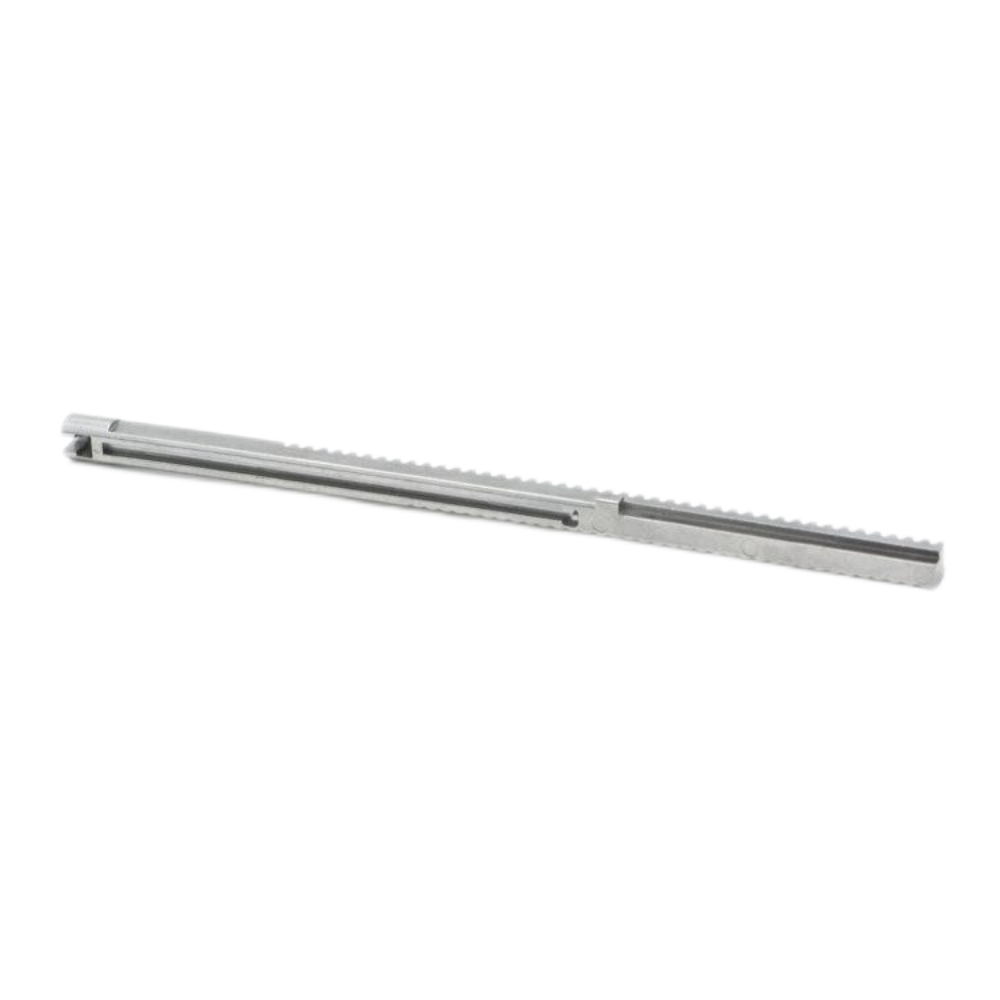

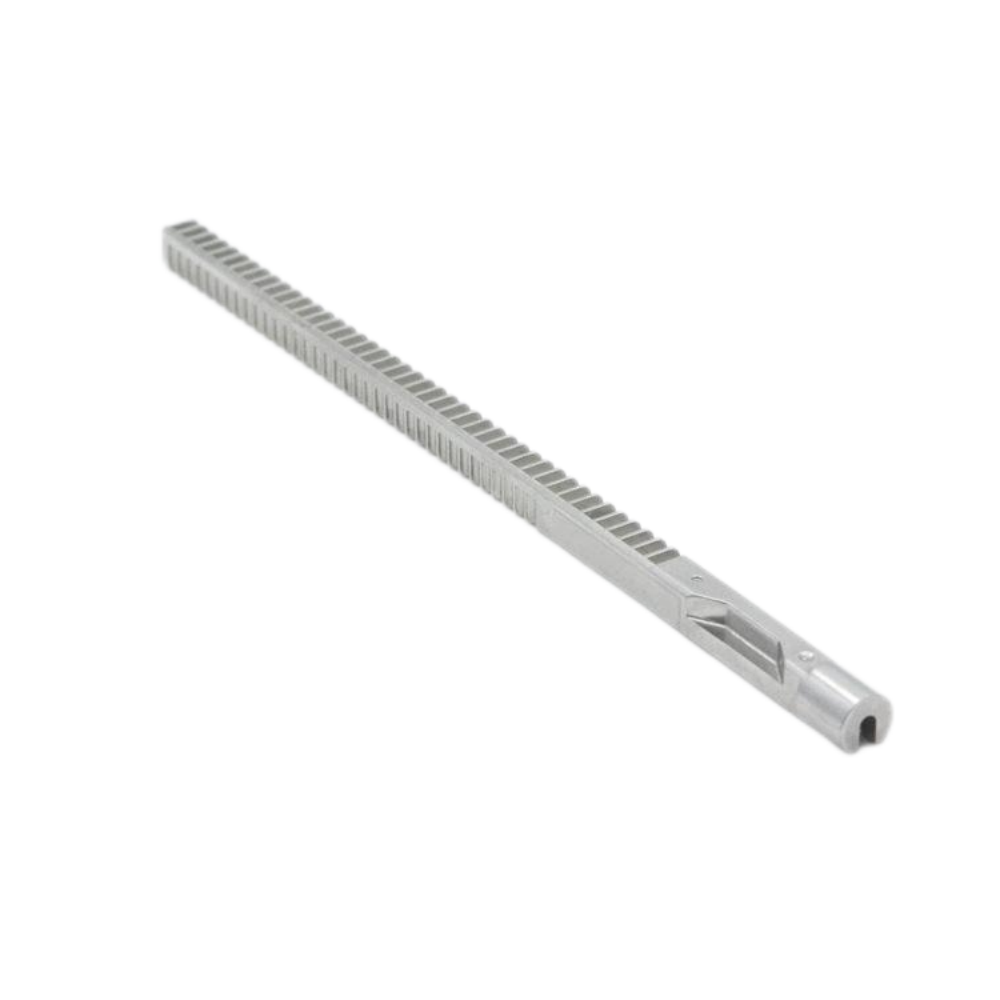

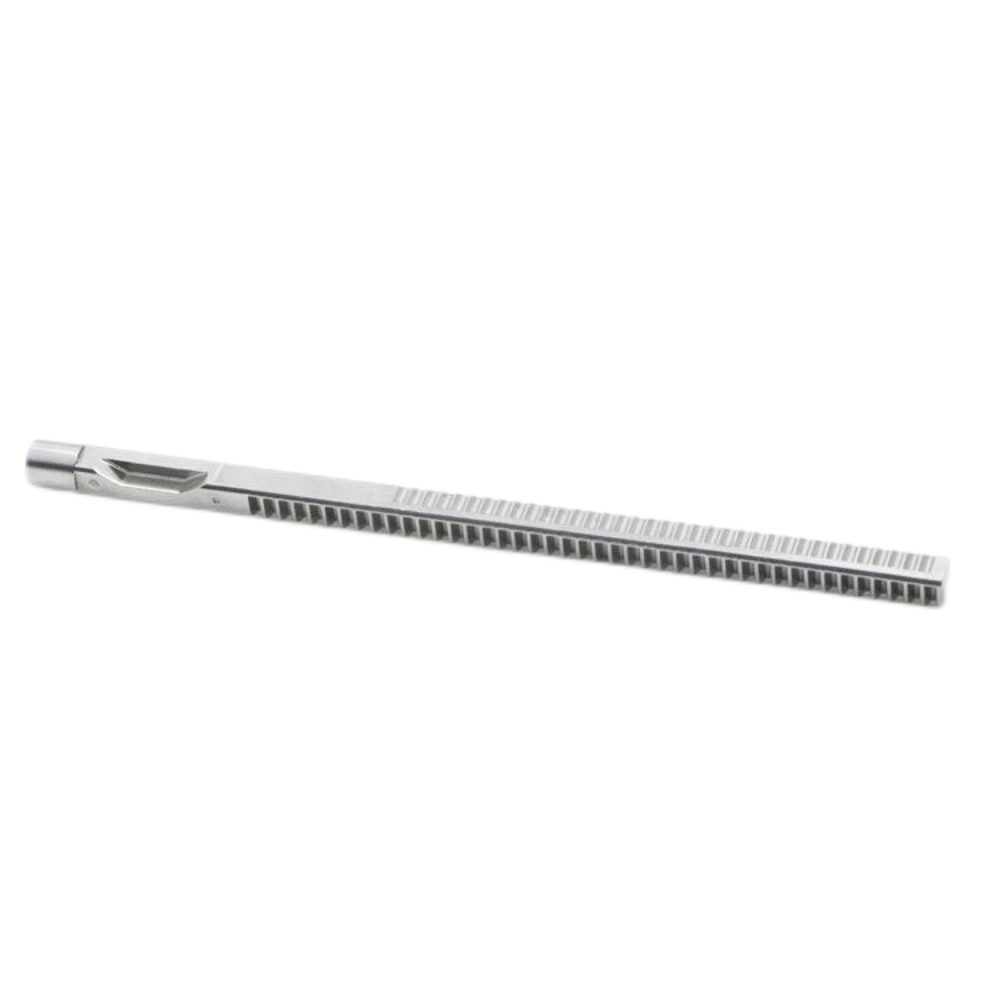

Custom Stainless Steel CNC Machined Linear Racks | Precision Gear Rack Components

Product Presentation
Custom Stainless Steel CNC Machined Linear Racks | Precision Gear Rack Components





（Key Features）


  • Premium Stainless Steel: 304/316 stainless steel construction delivers exceptional strength, corrosion resistance, and wear resistance for long-term linear motion reliability.
  • Precision Tooth Profile: CNC-machined (or hobbed) rack teeth ensure accurate meshing with pinions, enabling precise linear motion and torque transmission.
  • Custom End Connections: Tailored end features (D-slot, pin hole, locating tab) allow seamless integration with actuators, motors, or end-effectors.
  • Guided & Stable Motion: Integrated guide slots and locating holes ensure smooth, backlash-free linear movement in compact machinery.
  • Full Customization: Manufactured from your 3D CAD files; customize tooth pitch, length, end features, and surface finishes (passivation, polishing) to match your exact application needs.


（Technical Specifications）



Parameter Details
Material 304/316 Stainless Steel
Manufacturing Process CNC Precision Machining + Gear Hobbing/Shaping
Precision Tolerance ±0.01mm – ±0.05mm (Tooth Profile & Critical Features)
Key Features Linear rack teeth, custom end connections, guide slots, locating holes
Surface Treatment Passivation, Electrolytic Polishing, Sandblasting
Application Industrial Automation, Medical Devices, Precision Linear Motion Systems, Push-Pull Mechanisms
