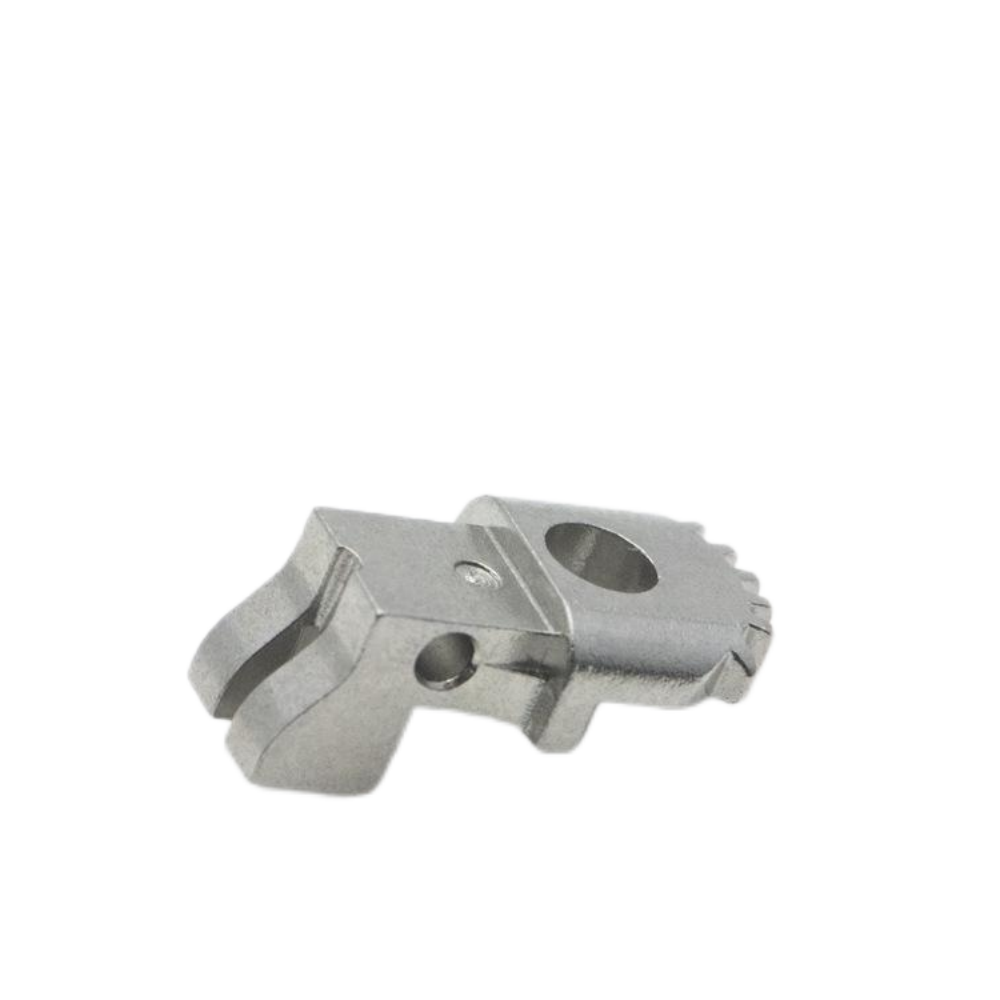

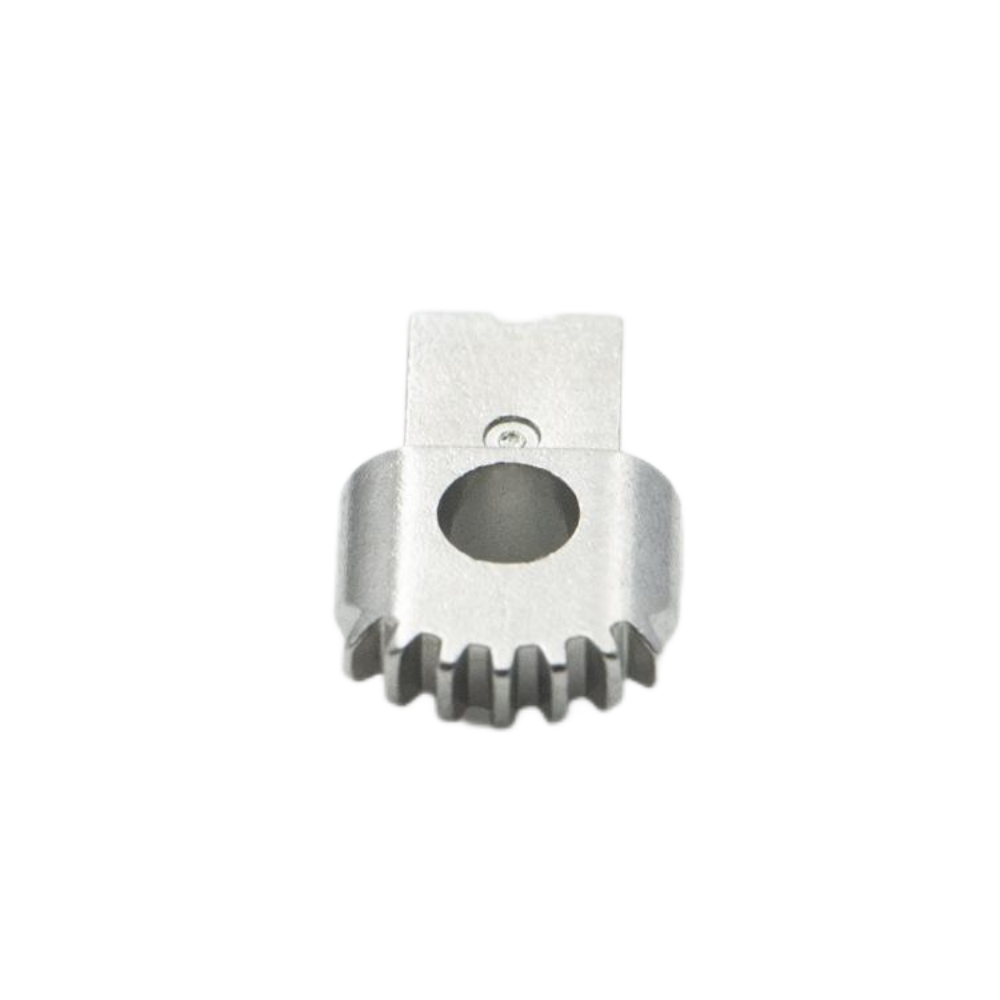

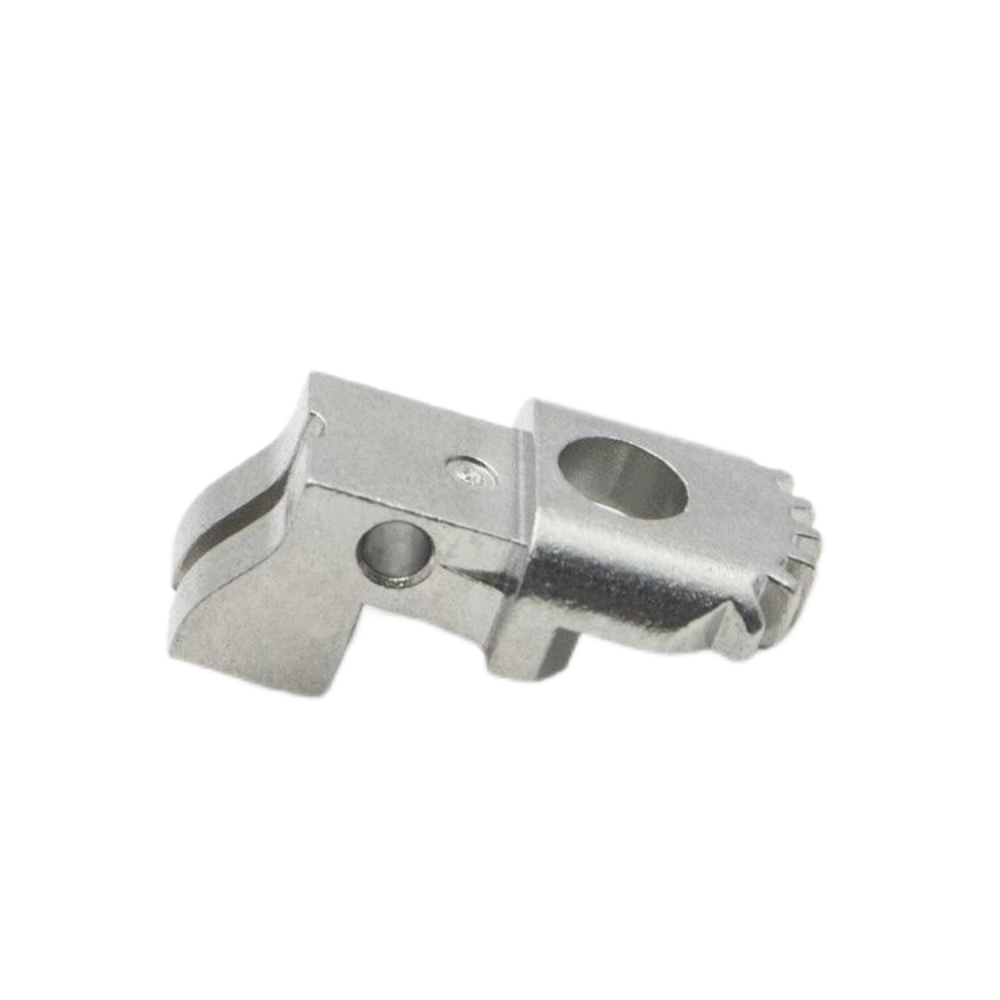

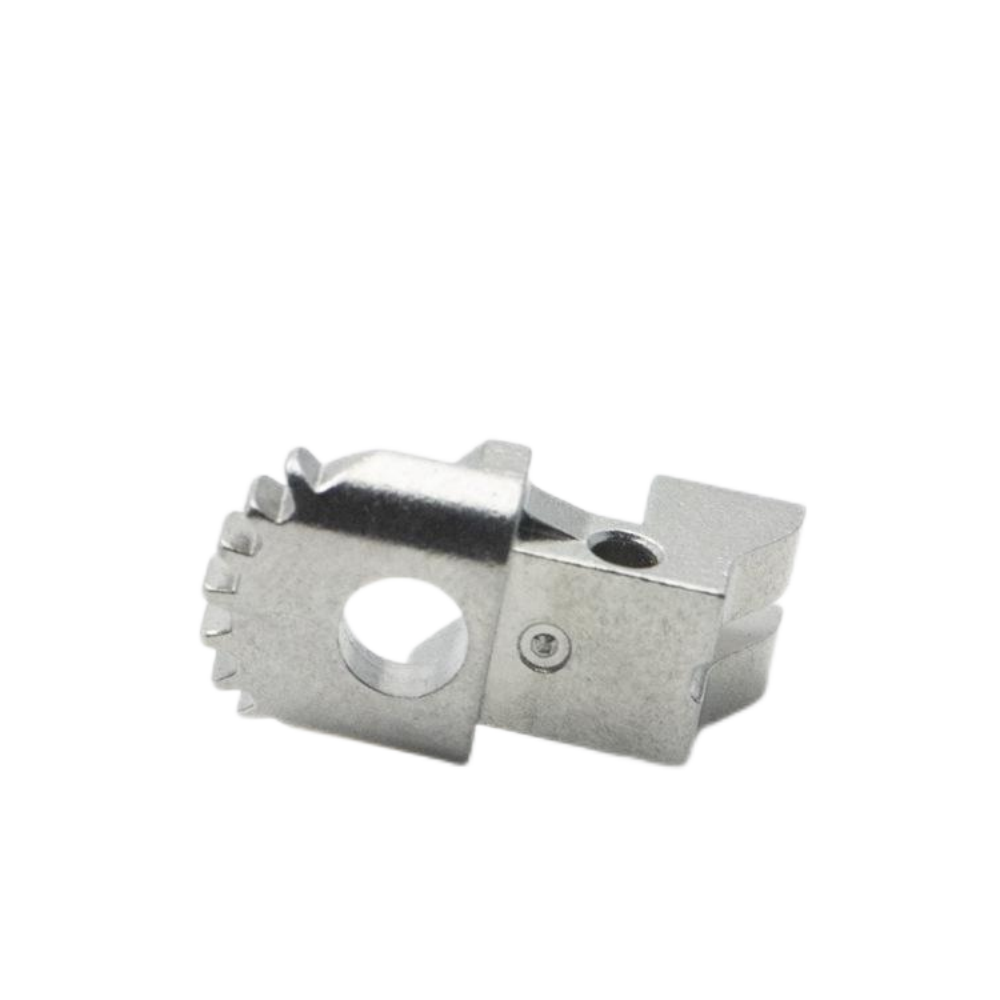

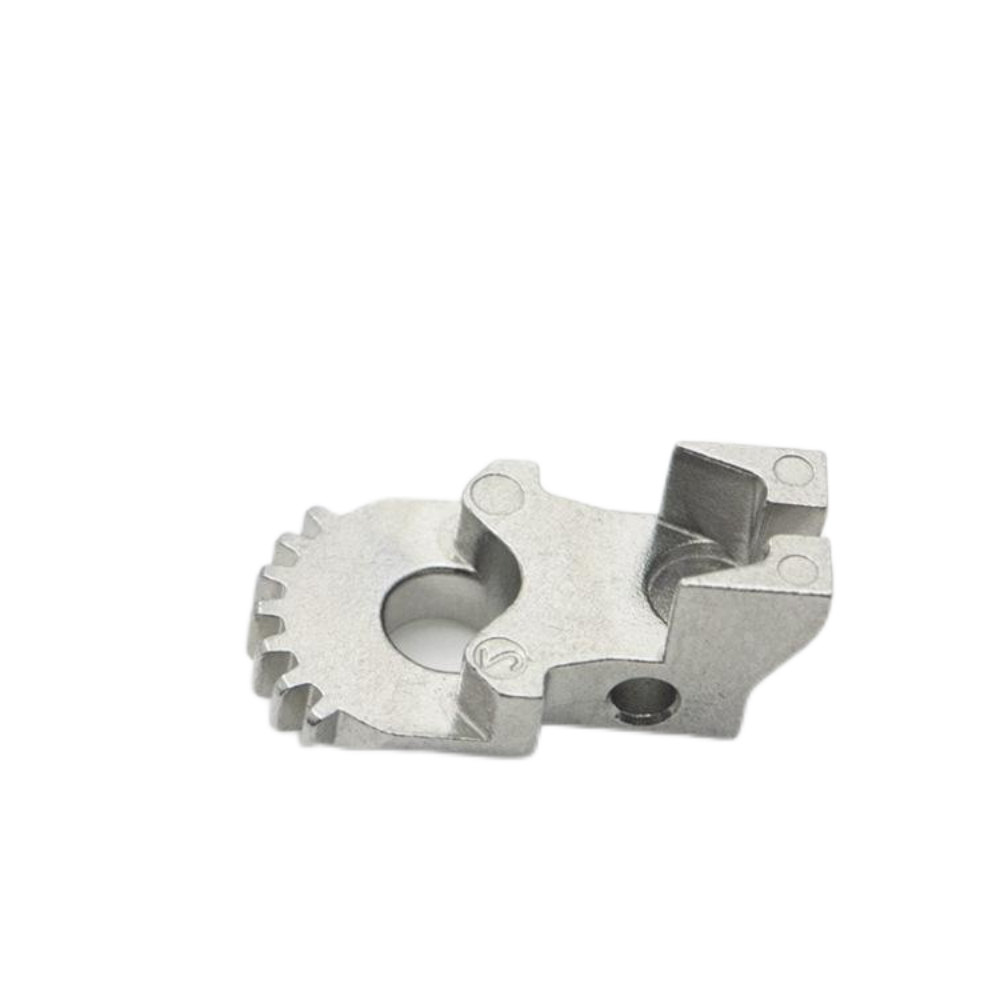

Custom Stainless Steel Precision Casting Gear Lever & Ratchet Forks | CNC Machined Clamp Bracket

Product Presentation
Custom Stainless Steel Precision Casting Gear Lever & Ratchet Forks | CNC Machined Clamp Brackets






（Key Features）


  • Premium Stainless Steel: 304/316 stainless steel construction delivers exceptional strength, corrosion resistance, and wear resistance for long-term mechanical reliability.
  • Complex Gear & Fork Design: Precision casting/MIM enables intricate gear teeth and fork structures, followed by CNC finishing for tight tolerances (±0.01mm).
  • Precision Motion Control: Integrated gear teeth and pivot hole enable accurate indexing, torque transmission, and one-way locking in compact machinery.
  • Versatile Mounting: Central pivot hole and side locking holes allow easy installation as a rotating lever, indexing clamp, or ratchet actuator.
  • Full Customization: Manufactured from your 3D CAD files; customize tooth profiles, hole patterns, and surface finishes (passivation, polishing) to match your exact application needs.


（Technical Specifications）



Parameter Details
Material 304/316 Stainless Steel
Manufacturing Process Precision Casting / MIM + CNC Secondary Machining
Precision Tolerance ±0.01mm – ±0.05mm (Critical Features)
Key Features Gear/ratchet teeth, pivot hole, locking holes, anti-misassembly marking
Surface Treatment Passivation, Electrolytic Polishing, Sandblasting
Application Industrial Automation, Jigs & Fixtures, Indexing Mechanisms, Actuator Linkages
