Stainless Steel Precision Locating Pins | Custom CNC Machined Shafts with Roll Pins
（Key Features）
-
Premium Material: Crafted from high-grade 304/316 stainless steel for exceptional corrosion resistance, strength, and durability.
-
Precision Machining: CNC-machined to tight tolerances, ensuring accurate dimensions, smooth surfaces, and reliable performance.
-
Secure Design: Integrated roll pin holes for secure locking and precise positioning in assemblies.
-
Fully Customizable: Tailor dimensions, hole positions, and surface finish to meet your exact project requirements.
-
Wide Application: Ideal for use in industrial automation, jigs, fixtures, and custom mechanical assemblies.
（Product Description）

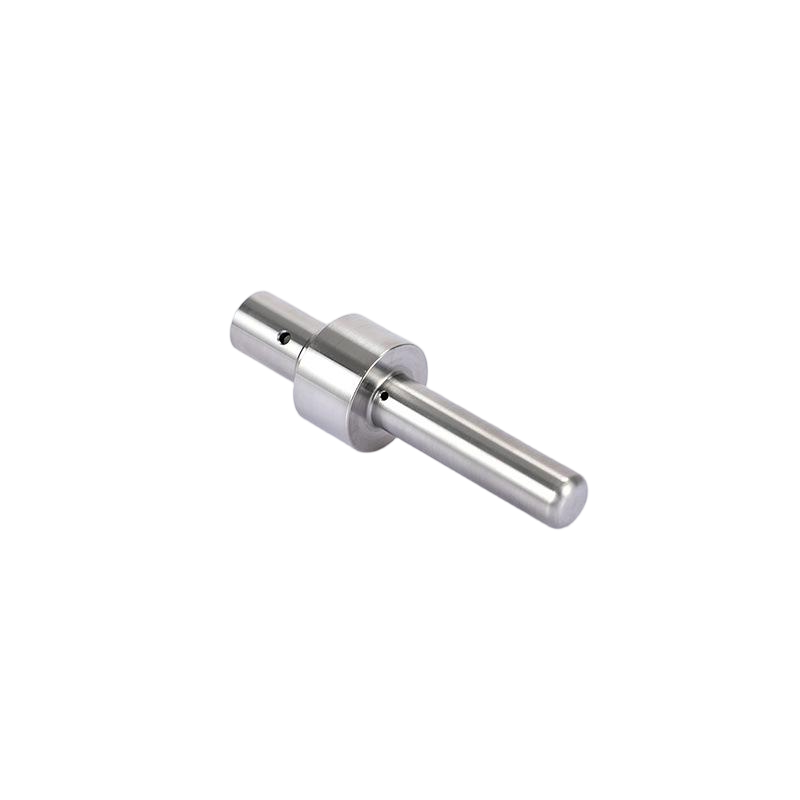

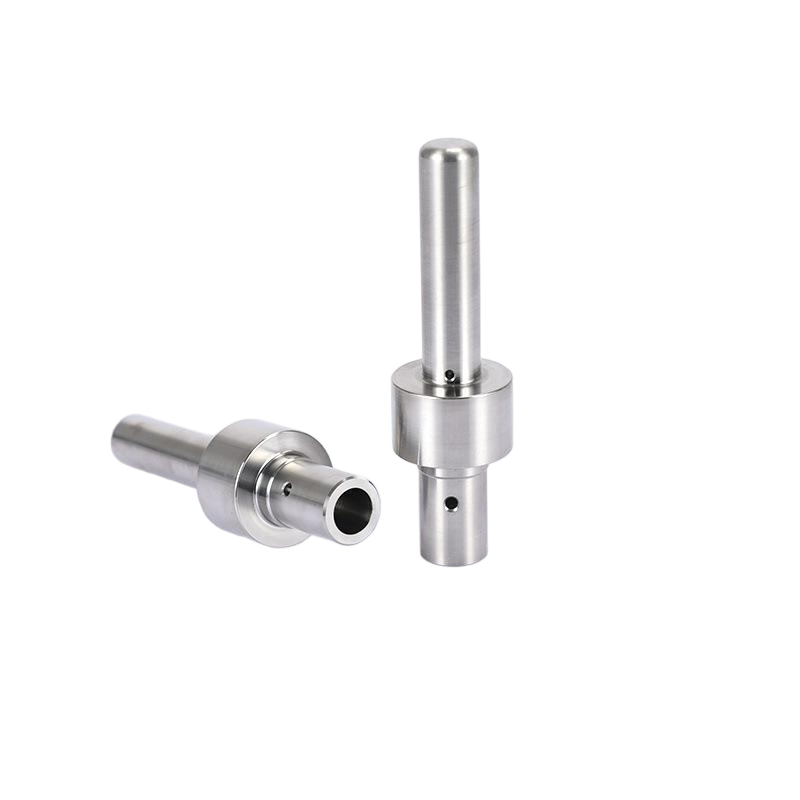

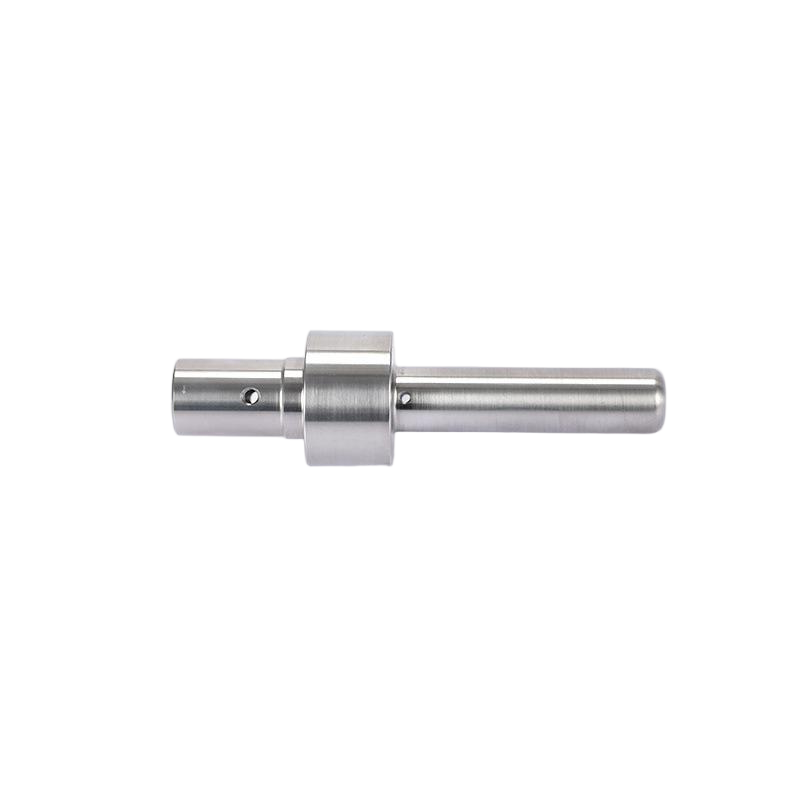

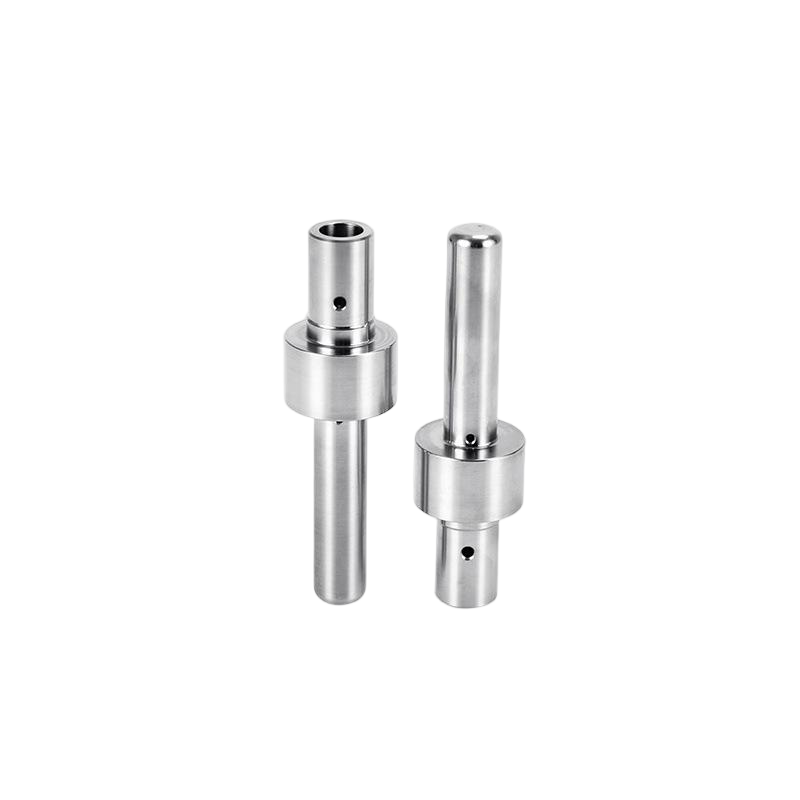

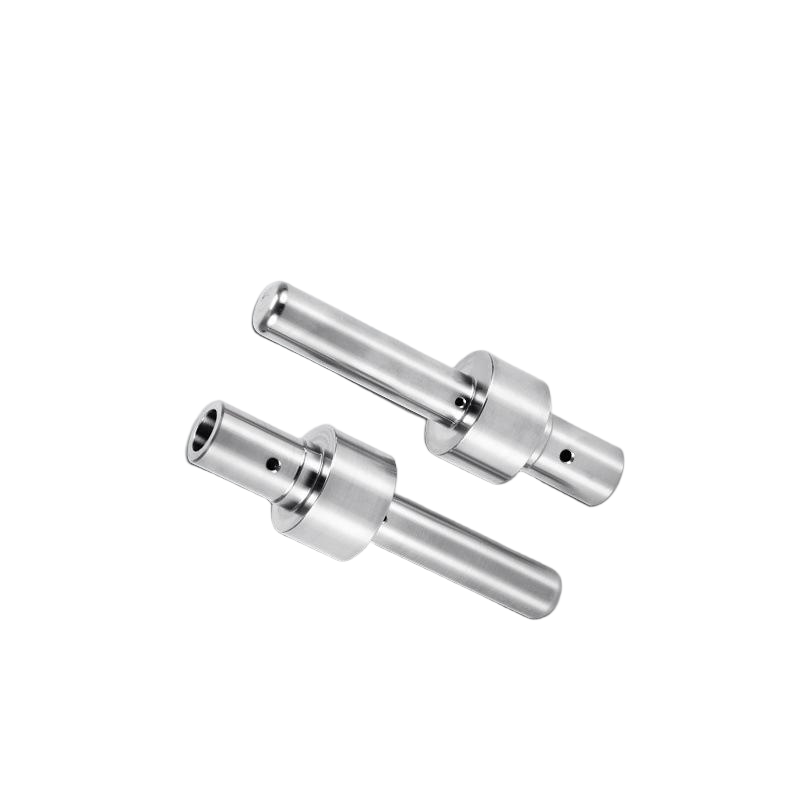

Our stainless steel precision locating pins are precision-engineered components designed for secure positioning and alignment in a wide range of industrial applications.
Featuring a robust cylindrical body with integrated roll pin holes, these pins provide a reliable and versatile solution for locating and securing components in jigs, fixtures, and automation equipment. The precision-machined surfaces ensure smooth operation and accurate alignment, while the roll pin holes allow for secure locking, preventing movement under vibration or load.
Manufactured from high-quality 304 or 316 stainless steel, these pins offer excellent resistance to corrosion, chemicals, and extreme temperatures, making them suitable for use in demanding environments such as industrial automation, aerospace, and medical equipment.
All our pins are fully customizable. Whether you need a specific dimension, hole position, or surface treatment (polishing, passivation, or brushing), our team can deliver a solution tailored to your project.
（Technical Specifications）
|
Parameter |
Details |
|
Material |
304 Stainless Steel / 316 Stainless Steel |
|
Product Type |
Precision Locating Pins |
|
Shaft Diameter |
5mm – 20mm (Customizable) |
|
Overall Length |
20mm – 100mm (Customizable) |
|
Flange Diameter |
10mm – 30mm (Customizable) |
|
Roll Pin Hole Diameter |
2mm – 5mm (Customizable) |
|
Surface Finish |
Polished / Passivated / Brushed |
|
Tolerance |
±0.01mm – ±0.05mm (Depending on complexity) |
|
Application |
Industrial automation, jigs, fixtures, custom mechanical assemblies |
