MIM Sintered Lifting Equipment Gear Bracket

Product Presentation

This lifting equipment gear bracket is produced by metal injection molding, combining the gear and mounting bracket in a single near-net-shape sintered part. Sintered alloy steel provides the high strength and wear resistance required for hoists, cranes and lifting mechanisms.

MIM Sintered Lifting Equipment Gear Bracket - view 1

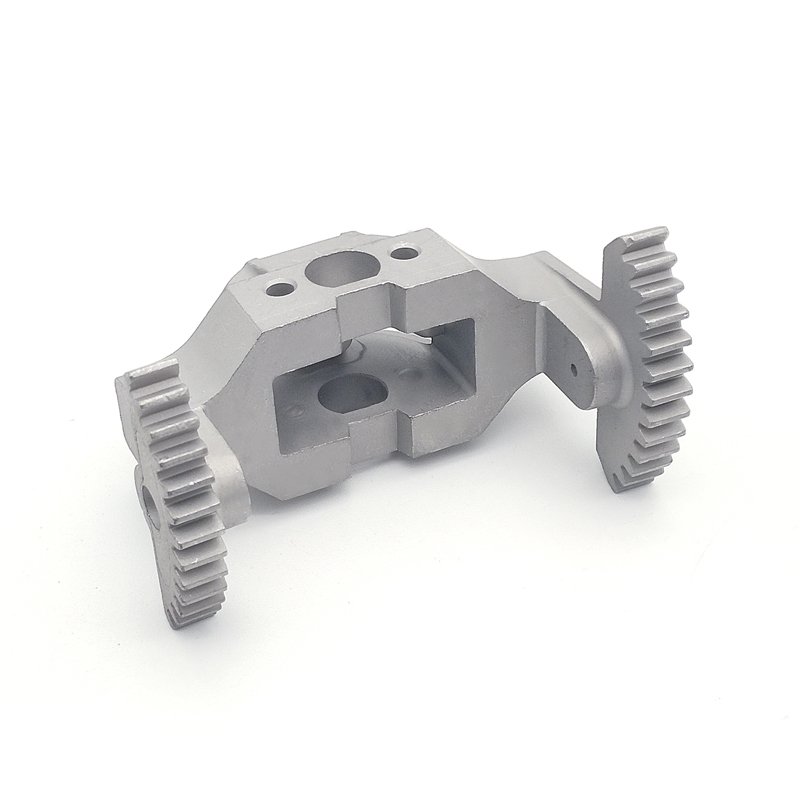

MIM Sintered Lifting Equipment Gear Bracket - view 2

MIM Sintered Lifting Equipment Gear Bracket - view 3

Key Features

Gear and mounting bracket combined in one MIM process
High strength and wear resistance from sintered alloy steel
Complex geometry that would be costly to machine
Excellent dimensional repeatability for service replacement
Customizable: geometry, material and heat treatment

Technical Specifications

Process	Metal injection molding (MIM) + sintering + heat treatment
Material	Alloy steel 4600 series, stainless steel
Hardness	HRC 28-45 after heat treatment
Density	96-98% of theoretical density
Tolerance	±0.3% of dimension (typical)
Surface finish	Shot blasting, black oxide, zinc plating
Volume	Suitable from 5,000 pcs/year and above
Lead time	15-20 days after tooling approval
Quality control	100% dimensional and mechanical inspection

Applications

Hoists, winches and cranes
Lifting and rigging equipment
Material handling mechanisms
Construction and industrial equipment
Custom MIM lifting components

Why Choose MDM

One-stop service from drawing review, tooling to mass production
ISO 9001 certified manufacturing with full inspection reports
Competitive pricing with on-time delivery worldwide
Free DFM feedback for cost and quality optimization
Fast response within 24 hours for all inquiries

Request a quote for your custom parts — send us your drawings, we reply within 24 hours.
